100x20mm Laser Engraved Stainless Steel Valve Tags
100x20mm Laser Engraved Stainless Steel Valve Tags
ZIP file if multiple files
This product has a minimum quantity of 10
100x20mm Laser Engraved Stainless Steel Valve Tags
Material: 316L Stainless steel

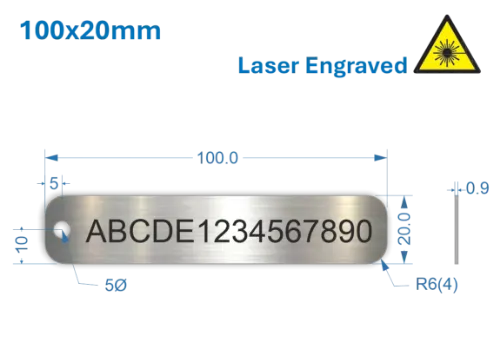

Size: 100x20mm
Thickness: 0.9mm
Hole Size: 5.0mm Hole
Position: 5mm from left edge ( Hole centre)
Corners: R6
Engraving: Fiber laser engraved, Black in colour
Character Height: Dependant on character count
Maximum Character count: 30
Service Temperature: -50°C to +1100 °C
Resistance to acid: Good
Resistance Solvents: Excellent
Resistance Grease/Oils: Excellent
Resistance to fire: BS476 Class 1
 | Download Example |
