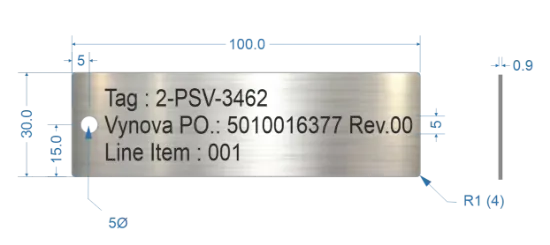

100x30mm Rectangle Stainless Steel Valve Tags
100x30mm Rectangle Stainless Steel Valve Tags
ZIP file if multiple files
This product has a minimum quantity of 10
100x30mm Rectangle Stainless Steel Valve Tags
Material: 316L Stainless steel
Size: 100x30mm
Thickness: 0.9mm
Hole Size: 5mm Hole
Position: 5mm from left edge centre
Corners: R1
Engraving: 0.35mm depth Infilled with colour
Character Height: Dependant on character count (Approx 3.5mm with 11 Characters)
Service Temperature: -50°C to +1100 °C (+150°C Painted)
Resistance to acid: Good
Resistance Solvents: Excellent
Resistance Grease/Oils: Excellent
Resistance to fire: BS476 Class 1
 | Download Example |
